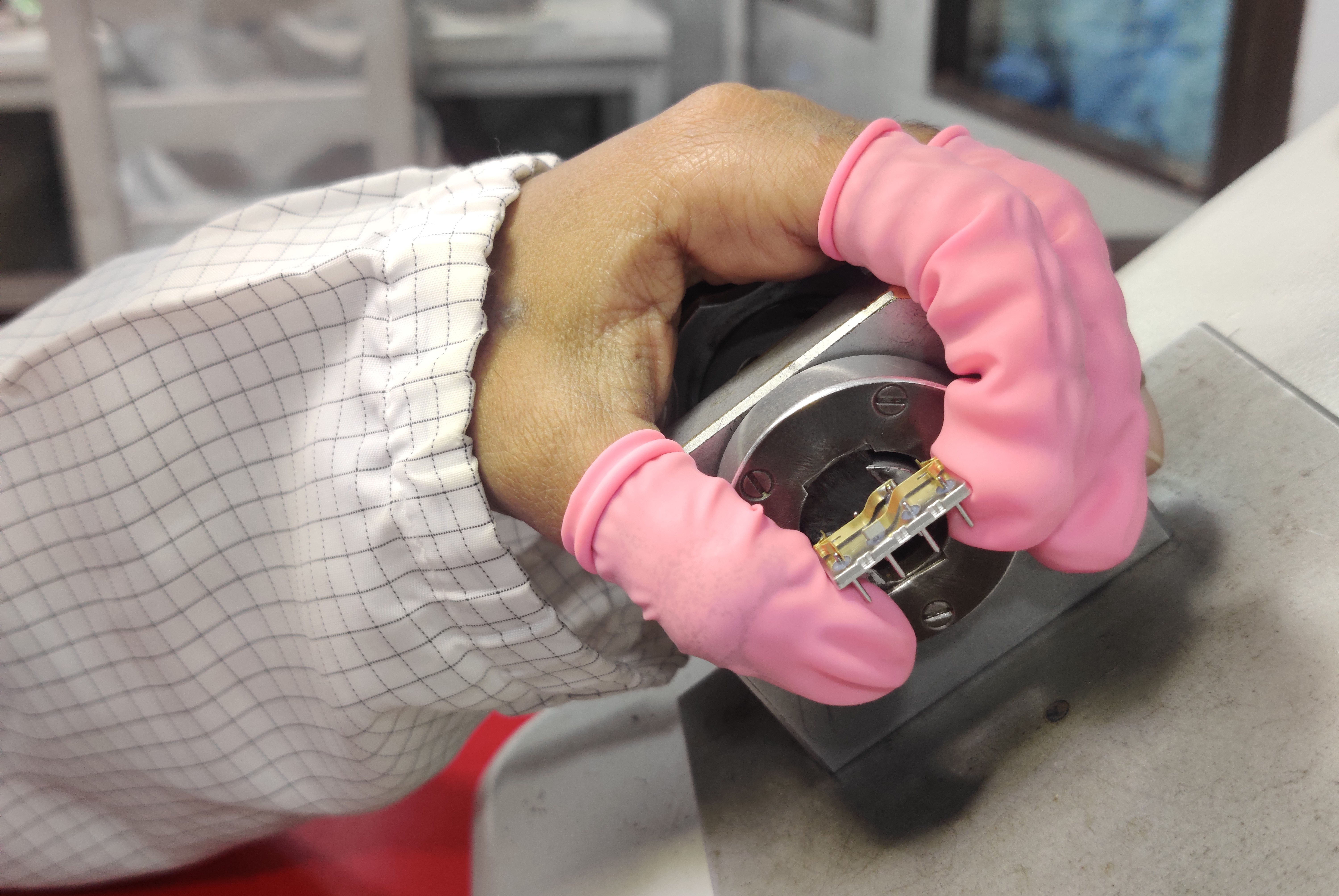

Header is a component of a relay, encompassing all the moving and stationary contacts of the relay, using specialized tools to check multiple parameters. The contacts are adjusted to achieve a specified dielectric spacing, and the return spring angle is maintained to achieve a specified return spring force as part of this process.

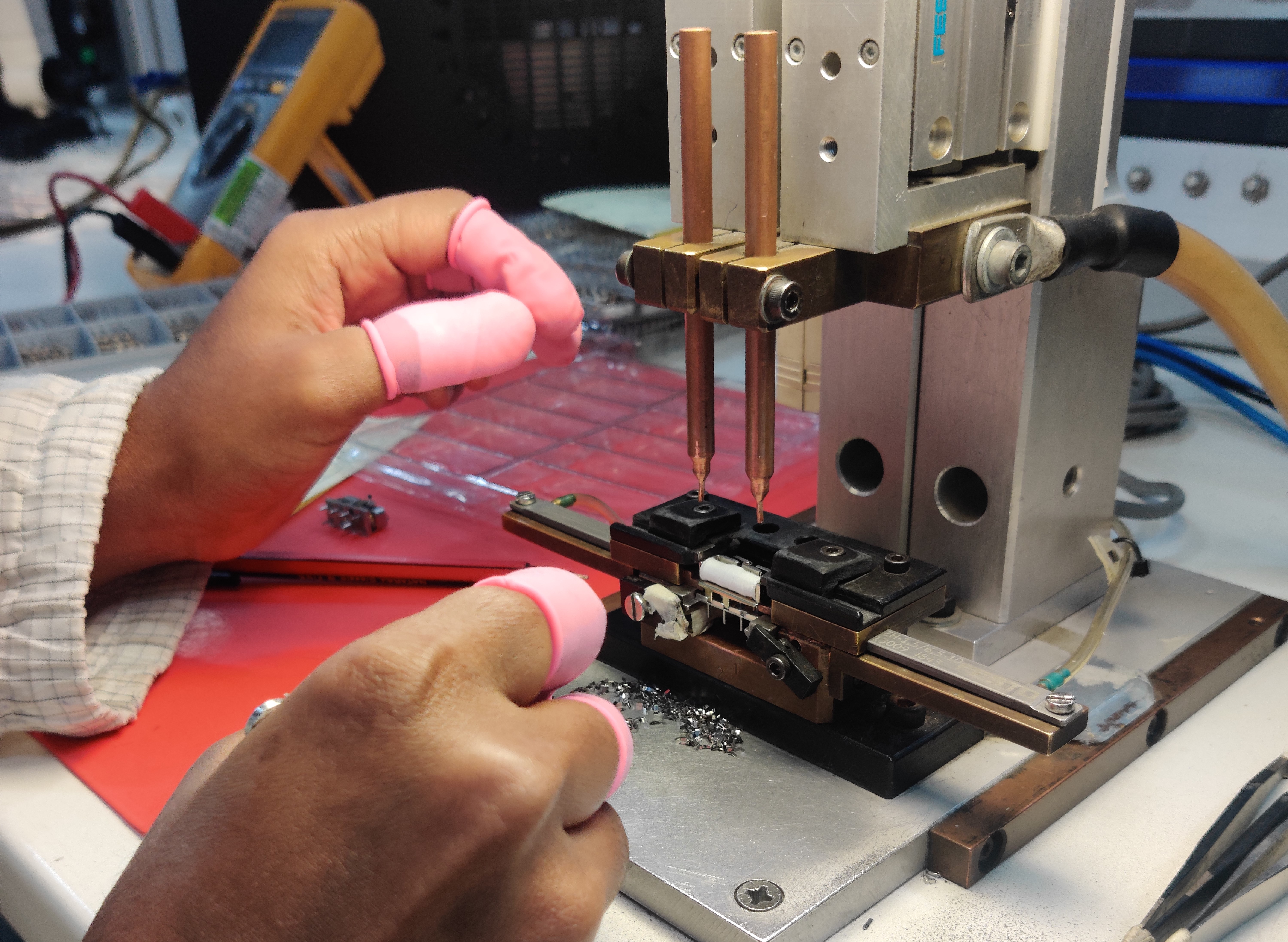

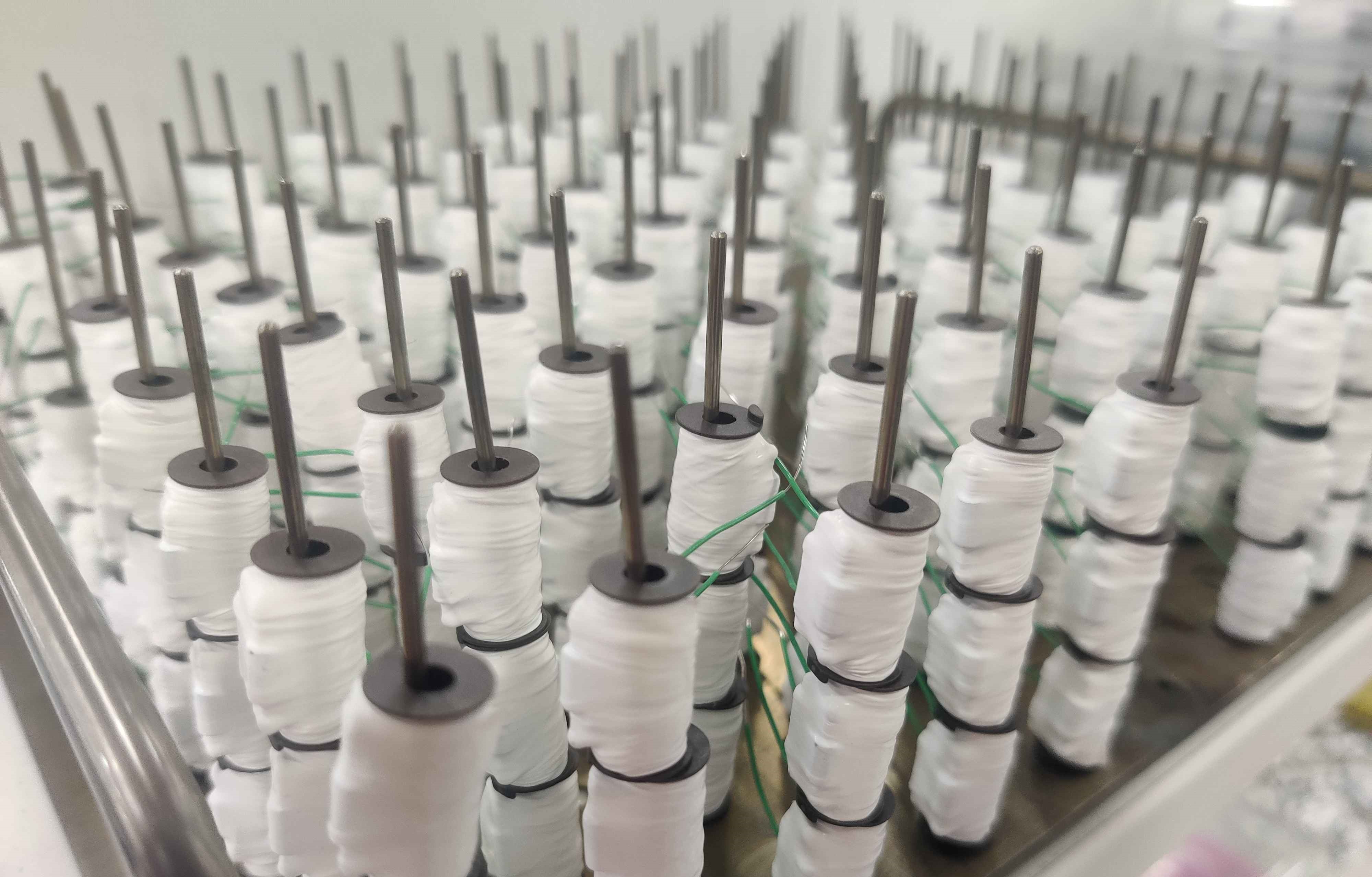

The motor is a component of a relay, which activates under the influence of an electromagnetic field caused by the current passing through the coil. It is built by assembling frame, coil, armature, and shim together and pneumatically peened, and is followed by motor adjustment for open close condition of relay. We manufacture both magnetically latched & non-latched motors. The motor assembly is done with precision under 20x magnification followed by the process of ultrasonic cleaning and vacuum baking.

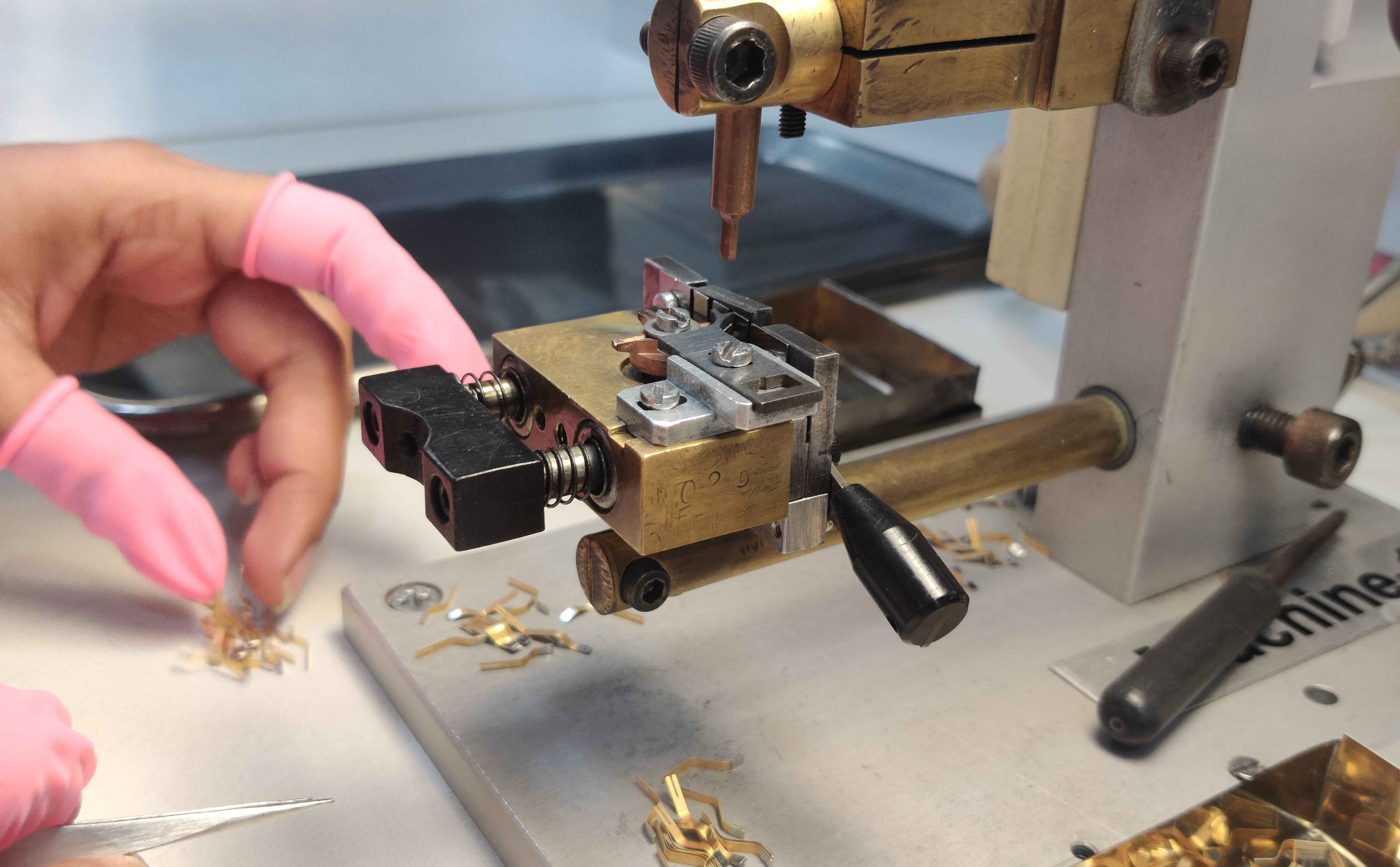

A relay is an electronically operated switch that is remotely activated by an electromagnet which pulls a set of contacts to either make or break a circuit. Electrical relays are commonly used for switching signals, radio frequencies, high current circuits when using a lower current circuit, and loads such as resistive, motor, lamp, inductive, and capacitive applications. This is helpful when an in-line switch or existing circuit does not have the capacity to handle the required current. We assemble both open seal and hermetically sealed relays as per a customer’s requirement.

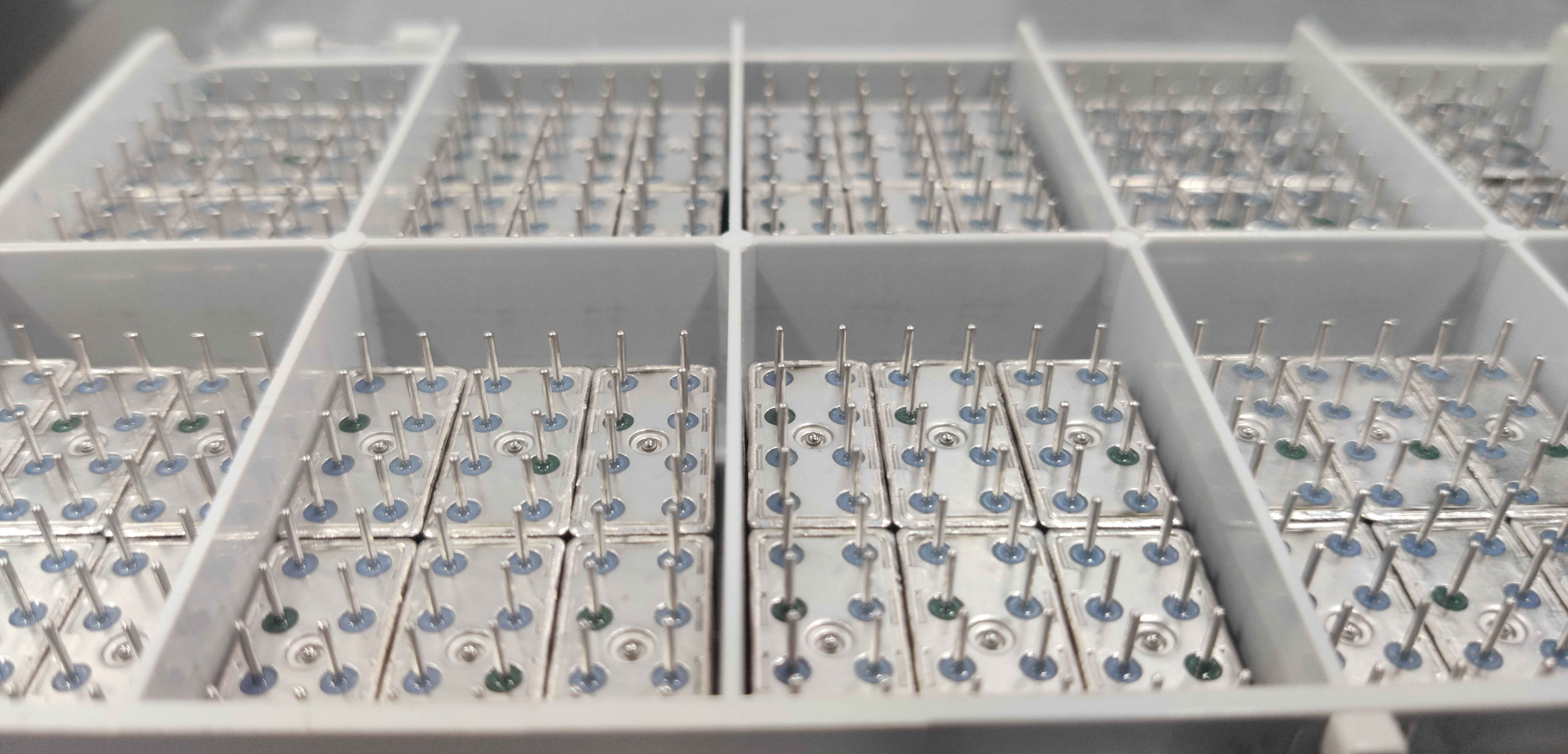

After the cleaning process, the open relays are then can welded by laser to make an airtight joint. The relay sealing involves three processes – Vacuuming, Leak testing using helium and mass spectrometer and then purging with UP Nitrogen followed by ball welding.
